Grove - 3-Axis Digital Compass V2
Grove - 3-Axis Digital Compass V2
  • Localstock
  • Overseasstock

$ 16.91

$ 16.91

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

Description

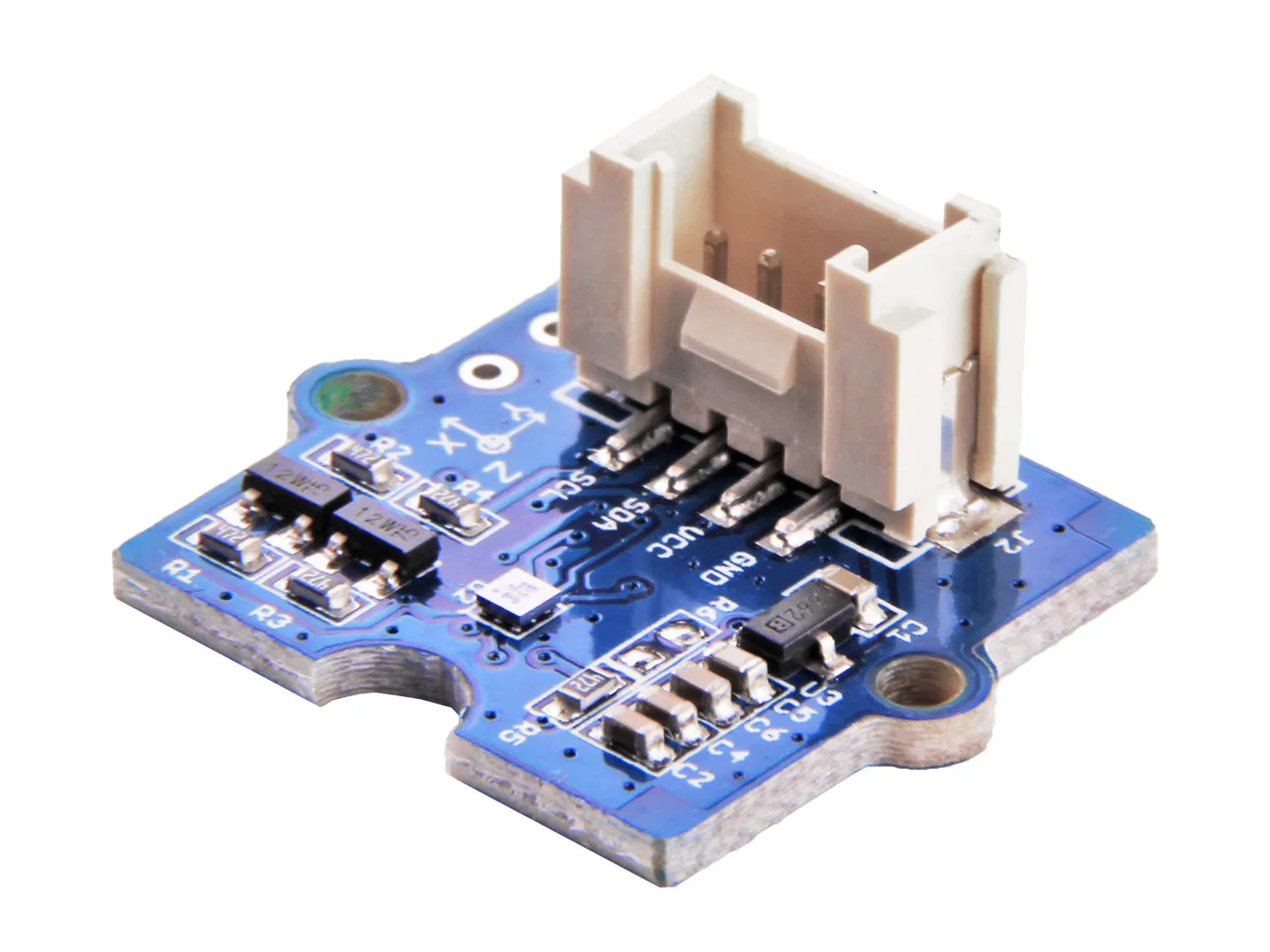

The Grove - 3-Axis Digital Compass is a digital compass sensor based on Bosch BMM150. It allows measurement of the magnatic field in three perpendicular axes and the output can be read out over I2C and SPI interface, perfectly suitable for 3-Axis mobile applications.



This is the second generation of Grove - 3-Axis Digital Compass, comparing to the first version, this version can perfectly match the demanding requirements of all 3-Axis applications while the price is almost half of the first version, very cost effective.

Technical Details

Dimensions 20mm x 20mm x 15mm
Weight G.W 10g
Battery Exclude
Working Voltage 3.3V / 5V
Magnetic field range typical ±1300μT(x, y-axis), ±2500μT(z-axis)
Magnetic field resolution 0.3μT
Interface I2C
Working Temperature -40℃ to 85 ℃

Part List

Grove - 3-Axis Digital Compass V2 1
Grove Cable 1
